MULTI-SLOT TRACK profile rolling forming machine

MULTI-SLOT TRACK profile rolling forming machine

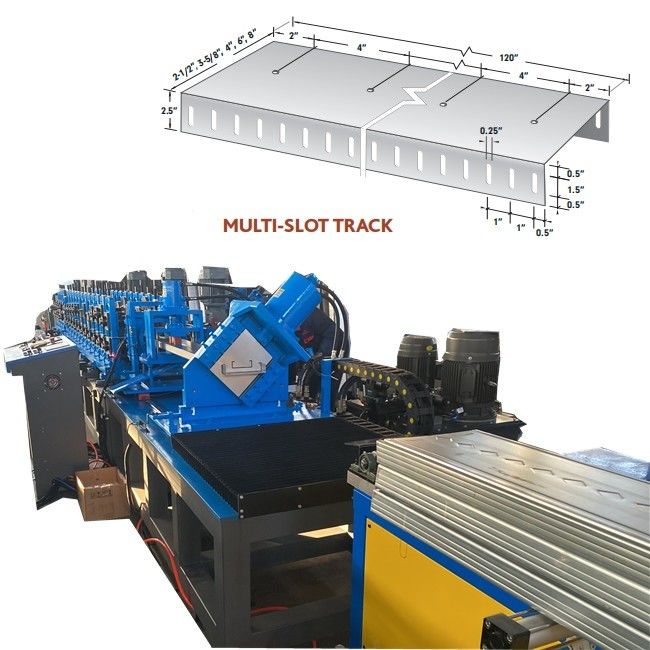

Multi-slot track profile rolling forming machine is designed to make the metal stud and track profile with the slotted track also. MULTI-SLOT TRACK is an economical deflection system designed to provide complete drywall or ceiling frame system. Use together with the metal track and stud, it allows for fast, easy and flexible stud installation. It is designed with The BAILEY MULTI-SLOT TRACK is an economical deflection system designed to provide complete pre-punched 1 1/2" slots are spaced 1" O.C. to accommodate any stud spacing. It also benefit you to increase the load capacity of the track. Here is one sample drawing profile for your reference:

MATERIAL SPECIFICATIONS: Multi-Slot Track is available in the following material specifications:

18 Mils, design thickness 0.0 188 in. (0.478 mm)

33 Mils, design thickness 0.0346 in. (0.879 mm)

43 Mils, design thickness 0.045 1 in. (1.15 mm)

33 ksi Yield Stress

54 Mils, design thickness 0.0566 in. (1.44 mm)

68 Mils, design thickness 0.0713 in. (1.81 mm)

50 ksi Yield Stress

Coating designation G40, G60 or G90 is hot dipped galvanized, complying with ASTM A653 or equivalent.

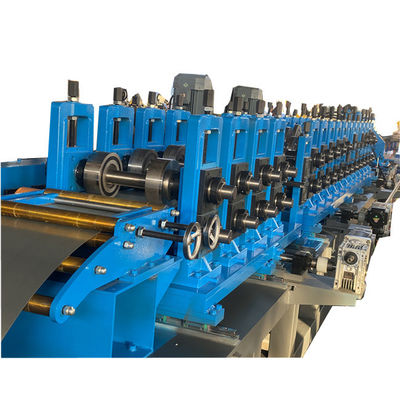

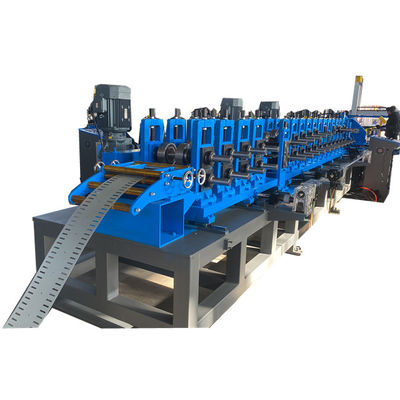

MULTI-SLOT TRACK profile rolling forming machine:

Different with other stud and track, slotted track profile with more punching holes. But in order to make the stud and track machine more functional, we design the machine either can make the slotted track with special holes or with the normal stud and track with embossing ribs and with special holes after punching.

Design Idea:

This machine is designed to machine normal drywall stud and track and also slot track by one machine. For the punching of slot track by the Punching machine.

As to the stud and track by after punching with rolling forming, servo motor control, the speed can reach 45 meter per minute.

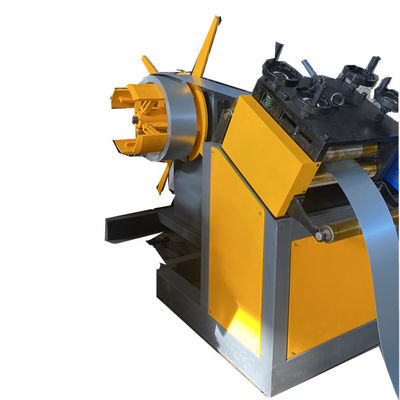

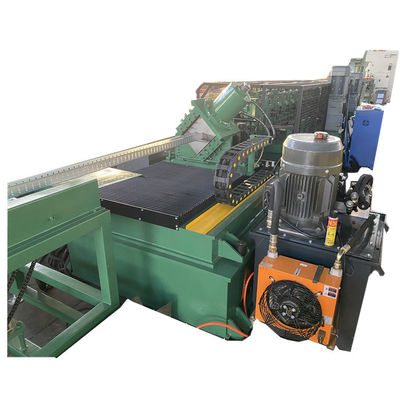

Working flow: 3 ton double head decoiler --cage loop-->80 ton YangLi punching machine- cage loop --main rolling forming machine-stud and track punching--> convey table and stacker.

Questions how to adjust hole sizes matched width variable of slotted track?

1. The punching mold has the handrail by which you can move the mold left and right in the way of same center distance.

2. It can keep the same distance and same edge distance. With mark, you can move according to the profile size. Just  this part need to be adjusted by hand not automatic.

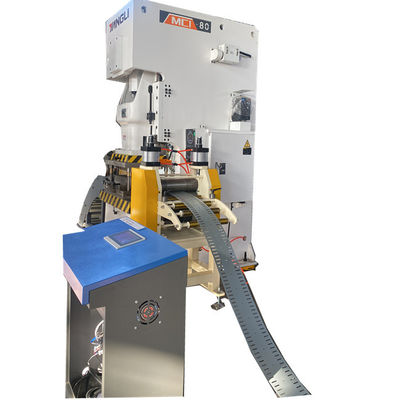

3. For the punching machine we use the YangLi brand. For the servo coil feeder, we design using two types adjustments.

   Mechanical adjustment and pneumatic adjustment to make sure the thickness range adjusting easily and also the coil feeding accuracy.

How to do the sizes adjustments?

PLC we will do the setting with all the sizes you need, when you change sizes, simple choose in the PLC and then the machine will be changed by the servo motor driven. Separated rollers will be move inside and outside to make sizes bigger and smaller. But you need to change the cutter.

New designs:

Instead of changing cutting blade, now we one type new cutter, simple adjusting then handrail and then it can make many different sizes. Just it has some wastage.

For this machine, if you have any question, please contact us at any time. Here is the machine working videos for your reference:
